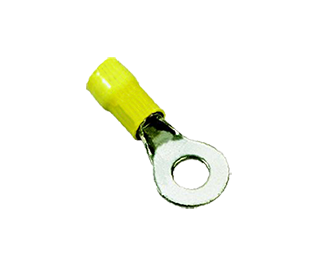

STC2-8-4J
- Product number:STC2-8-4J
- Order number:610845
- Brand:144
- Standard:NFF 00363
- Minimum package:500
- Unit:PCS
- Applications:2.6- 6.0 mm2
Product desciption
General features
? Material: tin-plated copper
? Insulation according to EN 45545
? Comply with NFF 00363
? Suitable for copper cables according NFF or EN standards
? SNCF drawing : 10-5050-309 / 10-5206-826
? RATP drawing : MR-3-52964
|
mm2 |
Part Number |
W |
L |
E |
? d |
F |
B |
? 1 |
|
0.34 - 1.5 |
51143-2 |
5.6 |
17.3 |
0.8 |
3.2 |
14.5 |
3.5 |
3.6 |
|
51153-2 |
8 |
21 |
0.8 |
3.2 |
17 |
6 |
3.6 |
|
|
51153 R-2 |
6.5 |
20.5 |
0.8 |
3.2 |
16.5 |
5.5 |
3.6 |
|
|
51154-2 |
8 |
21 |
0.8 |
4.2 |
17 |
6 |
3.6 |
|
|
51154 R-2 |
6.5 |
20.5 |
0.8 |
4.2 |
16.5 |
5.5 |
3.6 |
|
|
51155-2 |
8 |
21 |
0.8 |
5.2 |
17 |
6 |
3.6 |
|
|
51134-2 |
12.5 |
27 |
0.8 |
4.2 |
20.7 |
6.5 |
3.6 |
|
|
51135-2 |
12.5 |
27 |
0.8 |
5.2 |
20.7 |
6.5 |
3.6 |
|
|
51136-2 |
12.5 |
27 |
0.8 |
6.3 |
20.7 |
6.5 |
3.6 |
|
|
51138-2 |
12.5 |
27 |
0.8 |
8.4 |
20.7 |
6.5 |
3.6 |
|
|
1 - 2.5 |
51183-2 |
8.6 |
21 |
0.8 |
3.2 |
16.7 |
6 |
4.8 |
|
51184-2 |
8.6 |
21 |
0.8 |
4.2 |
16.7 |
6 |
4.8 |
|
|
51185-2 |
8.6 |
21 |
0.8 |
5.2 |
16.7 |
6 |
4.8 |
|
|
51174-2 |
12.5 |
27 |
0.8 |
4.2 |
20.7 |
6 |
4.8 |
|
|
51175-2 |
12.5 |
27 |
0.8 |
5.2 |
20.7 |
6 |
4.8 |
|
|
51176-2 |
12.5 |
27 |
0.8 |
6.3 |
20.7 |
6 |
4.8 |
|
|
51178-2 |
12.5 |
27 |
0.8 |
8.4 |
20.7 |
6 |
4.8 |
|
|
51183 R-2 |
6.4 |
20.5 |
0.8 |
3.2 |
16.5 |
5.5 |
4.8 |
|
|
51184 R-2 |
6.4 |
20.5 |
0.8 |
4.2 |
16.5 |
5.5 |
4.8 |
|
|
2.6 - 6 |
STC2-8-4J |
13.8 |
32.5 |
1 |
8.3 |
25.5 |
8 |
6.8 |
|
STC2-10-4J |
13.8 |
32.5 |
1 |
10.3 |
25.5 |
8 |
6.8 |
|
|
STC2-8-2JN |
13.8 |
35 |
1 |
8.3 |
28 |
8 |
8.8 |
|
|
STC2-10-2JN |
13.8 |
35 |
1 |
10.3 |
28 |
8 |
8.8 |
Note : part number with "R" suffix are square terminals.
-
