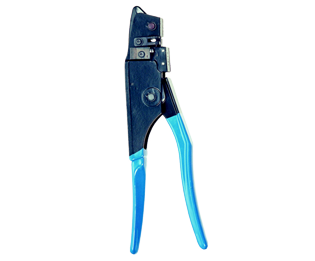

TH2
- Product number:TH2
- Order number:611878
- Brand:144
- Standard:
- Minimum package:1
- Unit:把
- Applications:Crimping of blue perinsulated terminals, disconnects, pins, blades and window butt connectors from 1.0 to 2.5 mm2
Product desciption
Crimping of blue perinsulated terminals, disconnects, pins, blades and window butt connectors from 1.0 to 2.5 mm2
Aluminium body
Exceptional low gearing
High quality crimping by linear movement of diesAdjustable crimping of cable insulation by eccentric
Safety ratchet
Positioner stopper
Crimping dies identification reference mark : 2 dashes
Delivered in individual box with control and instruction leaflet
Length : 290 mm
Weight : 0.490 Kg
TH 2 : delivered with stopper HF20 for terminals, disconnects, pins and blade terminals
TH 2 S : delivered with stopper HF20 for terminals, disconnects, pins and butt connectors
Complementary accessory :
PG 2 : go-no go gauge
-
